A Home for Helium inside Earth- Drs. Xiaolei Feng & Simon A. T. Redfern

DECEMBER 26, 2018


Helium is the second most abundant element in the Universe, but it's relatively rare on Earth. New study from a team of scientists including Drs. Xiaolei Feng and Simon Redfern predicted a helium-bearing compound, FeO2He at the Earth core-mantle boundary conditions. Their further velocity calculations show that FeO2He could be a feasible constituent in ultralow velocity zones at the lowermost mantle. The study is published in recent Physical Review LettersThe work was picked up as an Editor's Highlight featured in Physics.

Primordial helium—a remnant of the early Solar System—emanates from the ground at sites of lava plumes like those found in Hawaii, Iceland, and the Galapagos. But the source of this helium deep inside the Earth remains unknown. Now researchers predict the existence of a helium-bearing compound, FeO2He, that could serve to store this enigmatic element. Their calculations indicate that the compound is stable at temperatures and pressures consistent with those found at the bottom of the Earth’s mantle—the mostly-solid layer between the crust and the molten outer core. If verified, the results would support the science behind using helium to trace the age and history of cosmological bodies, since other similar planets should contain the same material.

After hydrogen, helium is the most abundant element in the Universe, and on Earth, there are two places to find it. Helium is continuously produced through radioactive decays in the crust, and it is also found in lava and gas plumes originating from the mantle. This mantle helium bears signatures showing that it was present when the Earth formed. Researchers assume that it must exist somewhere in the Earth in solid form; otherwise it would have escaped long ago, thanks to helium’s low density. However, helium-bearing rocks are rare—the inert element has limited capabilities to form compounds with other elements. And so far, such compounds are absent from measurements and predictions of rocks, leaving the hypothesis unconfirmed.

Motivated by recent predictions, Prof. Yanming Ma’s group from Jilin University collaborated with Drs. Xiaolei Feng of HPSTAR and University of Cambridge, and Changfeng Chen from University of Nevada to carry out computationally searching for possible minerals containing iron and magnesium that might react with helium. Iron and magnesium are good starting points for such an investigation, as the elements are both abundant inside the Earth, says team member Changfeng Chen of the University of Nevada, Las Vegas.

The team used a crystal structure search algorithm called CALYPSO—developed by Ma’s group—that finds compound candidates by calculating their energies. When the presence of helium in a candidate compound lowers the energy compared with the helium-free version, the helium-containing compound is considered “favorable,” and the algorithm spits out a proposed crystal. The algorithm’s search turned up empty-handed for magnesium-based compounds. But the team found one potential iron-based compound that fit their criteria—FeO2He.

The team’s calculations show that FeO2He forms a stable structure at temperatures between 3000 and 5000 K and at pressures ranging from 135 to 300 gigapascals (GPa), conditions that correspond to those found at the core-mantle boundary. The team also carried out simulations of FeO2He at a temperature of 3000 K and a pressure of 135 GPa to find the material’s acoustic properties. They found that sound waves move through the compound at speeds equivalent to those obtained in seismic-wave measurements of the core-mantle boundary, indicating that the material’s properties are consistent with observations of this region.

Recent synthesis experiments also point to FeO2He being a strong contender for housing primordial helium. Both FeO2 and the hydrogen-containing compounds FeO2Hx have been formed in laboratory settings at the temperatures and pressures found in the lower regions of the mantle. Chen says that the successful creation of those materials indicates that researchers could—relatively quickly and easily—confirm in the lab that FeO2He is stable in deep Earth conditions.

Helium-bearing compounds have, until very recently, been considered unlikely to exist under the physical conditions on or inside the Earth, Chen says, but in his opinion, his team’s new predictions change that view. Chen suggests that primordial helium reacted with FeO2 back when the Earth was new, forming a solid material. The compound is sufficiently heavy that it would only rise to the surface through so-called mantle plumes, which are columns of hot, solid rock that move up to the crust. When FeO2He nears the surface and experiences a drop in temperature and pressure, it should destabilize and release helium gas.

If this result is correct, it could solve the problem of where and how primordial helium is stored, says Matt Jackson, a geochemist at the University of California, Santa Barbara. Jackson studies the chemical compositions of lava plumes and has found signatures of primordial helium. “This is an exciting result,” he says, but he cautions that the predictions need to be tested with laboratory experiments. Ronald Cohen, a geophysicist at the Carnegie Institution for Science in Washington, DC, agrees. He and others thought that primordial helium was most likely stored as impurities in mantle minerals, so the prediction of a helium-containing compound is a surprise, he says.

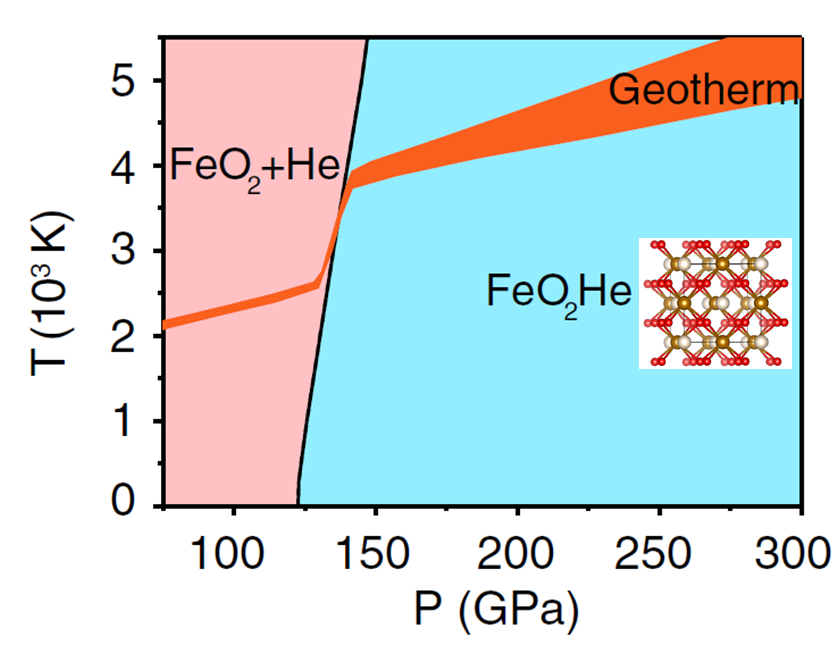

Caption: Pressure-temperature (P-T) phase diagram showing the stability field of  FeO2He and its boundary with the decomposition products FeO2 + He. Also shown is the geotherm indicating the P-T profile in Earth’s interior.


Adapted from APS Physics: https://physics.aps.org/articles/v11/133


氦是宇宙中仅次于氢的第二丰富的元素,但由于其化学惰性不能像氢元素一样与其他元素反应生成稳定的化合物,因此只有少量的地球形成初期形成的原始氦气存在于大气中,或者说氦元素是地球上的稀有元素之一。然而近几年地质科学家们发现有氦气从地幔俯冲带喷发出来(比如洛杉矶盆地Newport-Inglewood断层带)。因此科学家们推测地幔中或许存在氦的化合物。然而一直未发现含有氦元素的矿物。甚至在地幔温度压力下也未合成相关的含有氦元素的矿物。吉林大学的马琰铭教授带领的课题组与北京高压科学研究中心的冯晓蕾博士,及Simon Redfern教授,内华达大学的陈长风教授合作,使用理论计算的方法预测氦气能与最新发现的下地幔铁氧化物(FeO2)发生反应,生成一种稳定的立方相化合物—FeO2He, 进一步的声速计算表明FeO2He的声速与核幔交界处超低速区的地震波速度符合的很好,因此提出FeO2He很可能是存在于超低速带的有效化合物相关成果发表于近期的《物理评论快报》。
